Magura GUSTAV PRO First Edition!
Couldn't load pickup availability
Brand: Magura
PRE-ORDER!
We have just had notification that these are due to be delivered very soon.
Get yourself on the list to be the first to receive these awesome brakes!

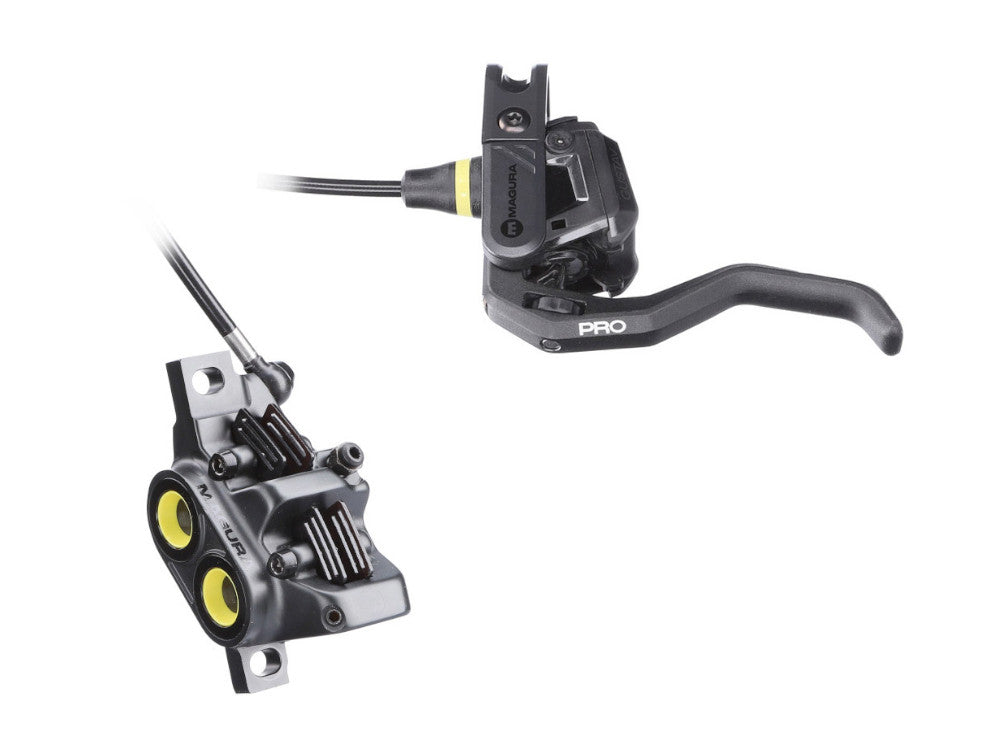

MAGURA Gustav PRO disc brake
The rebirth of the Magura Gustav brings back memories of the "good old days". Known as the "Swabian Anchor", its performance was legendary, its braking power unrivaled and the current PRO version continues in exactly this vein. It will also set standards in terms of deceleration, modulation and reliability and bring even heavy E-MTBs to a safe stop at all times.

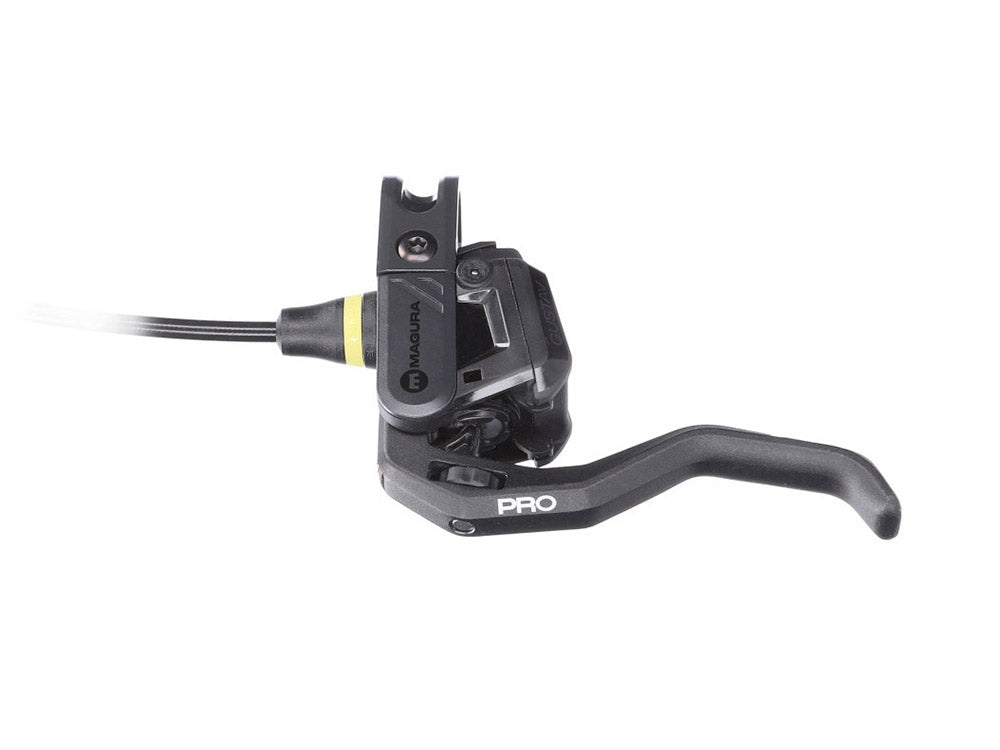

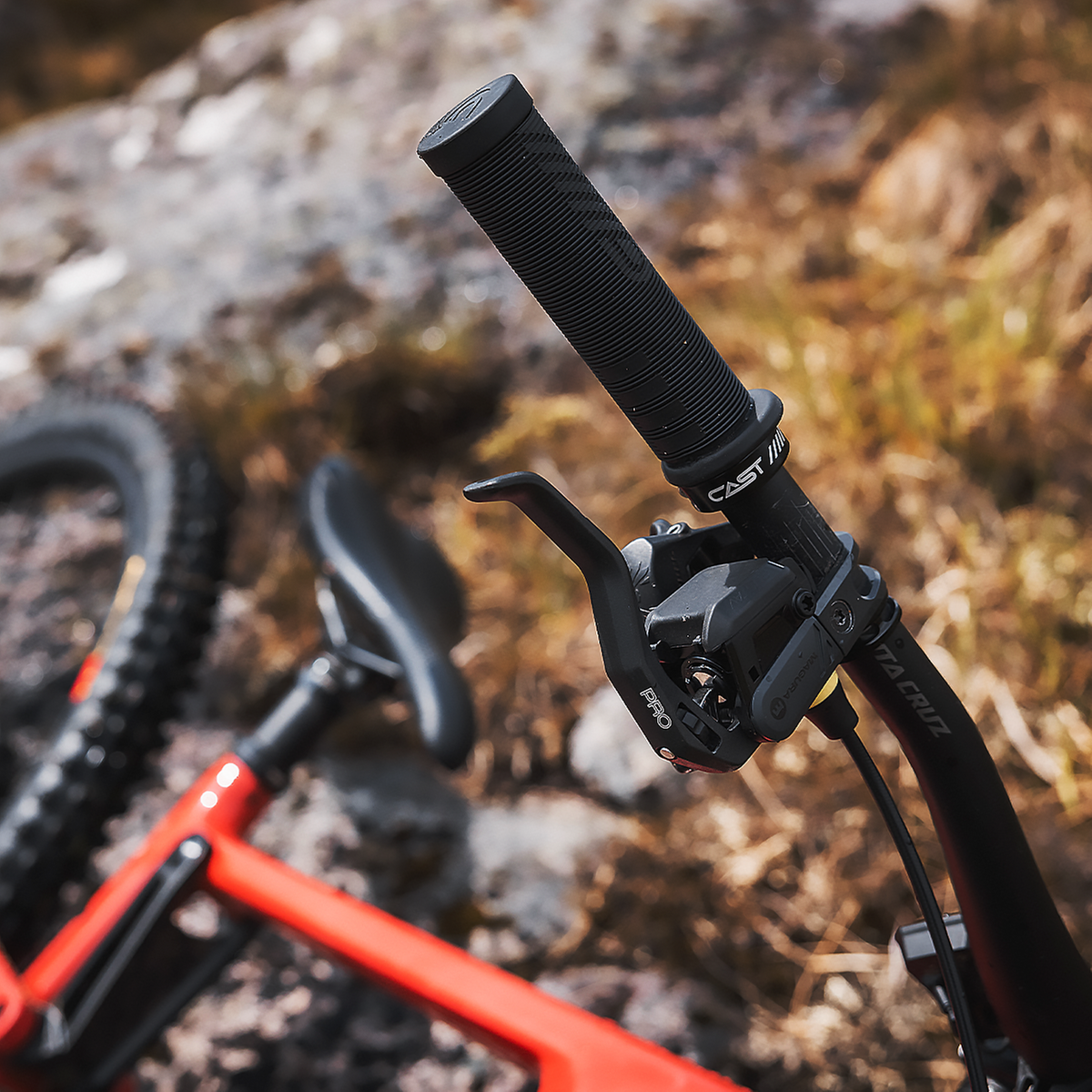

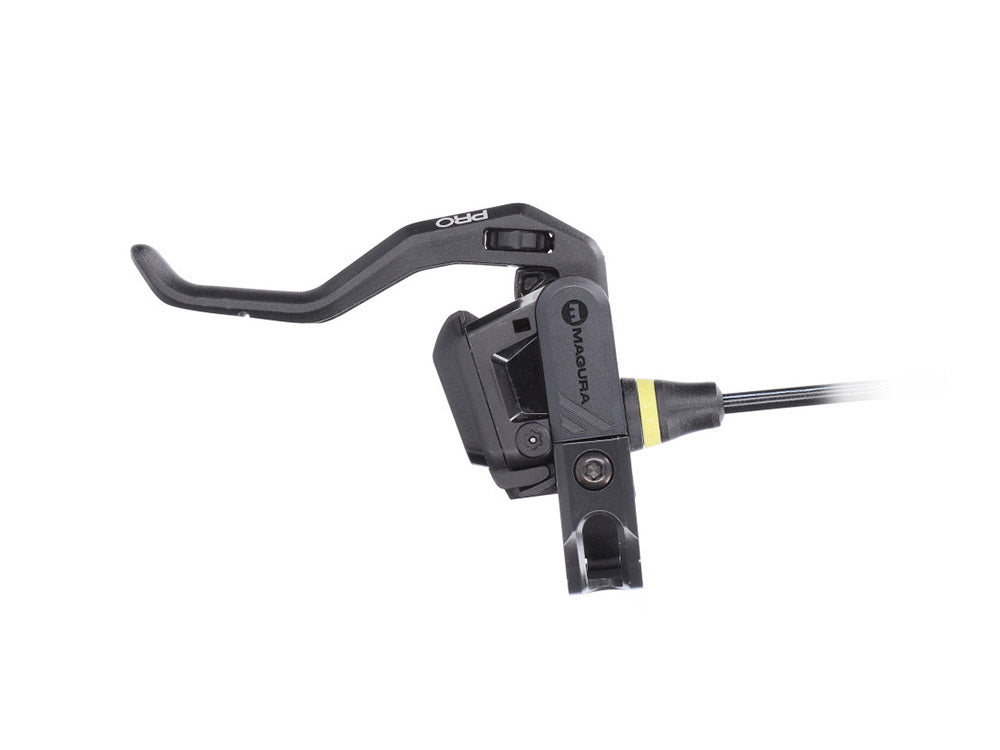

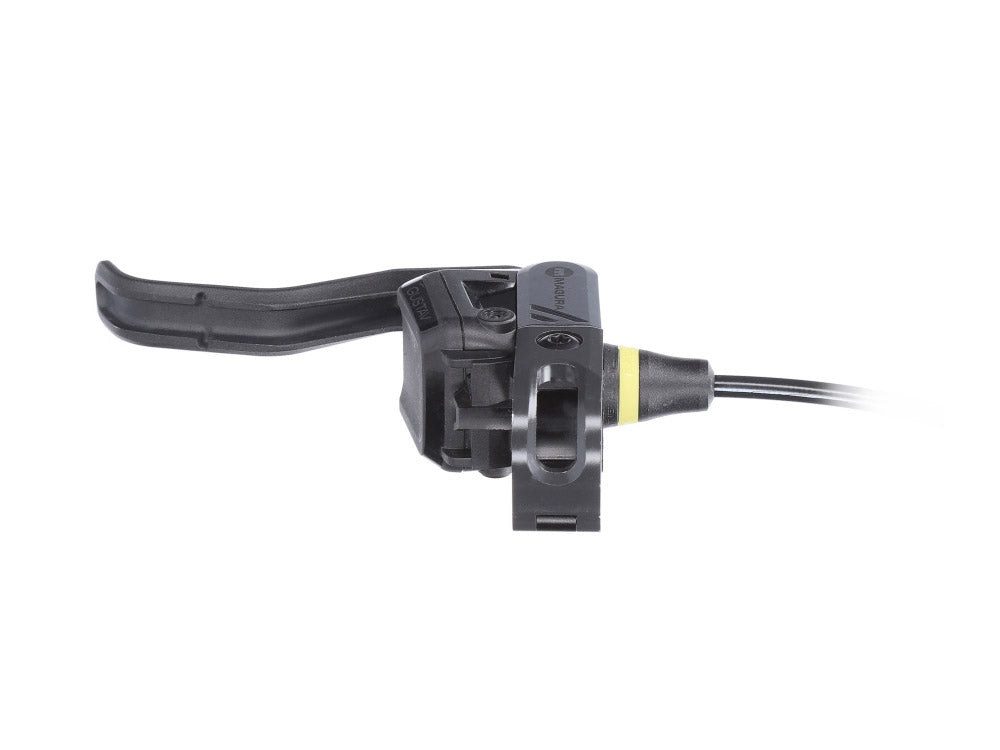

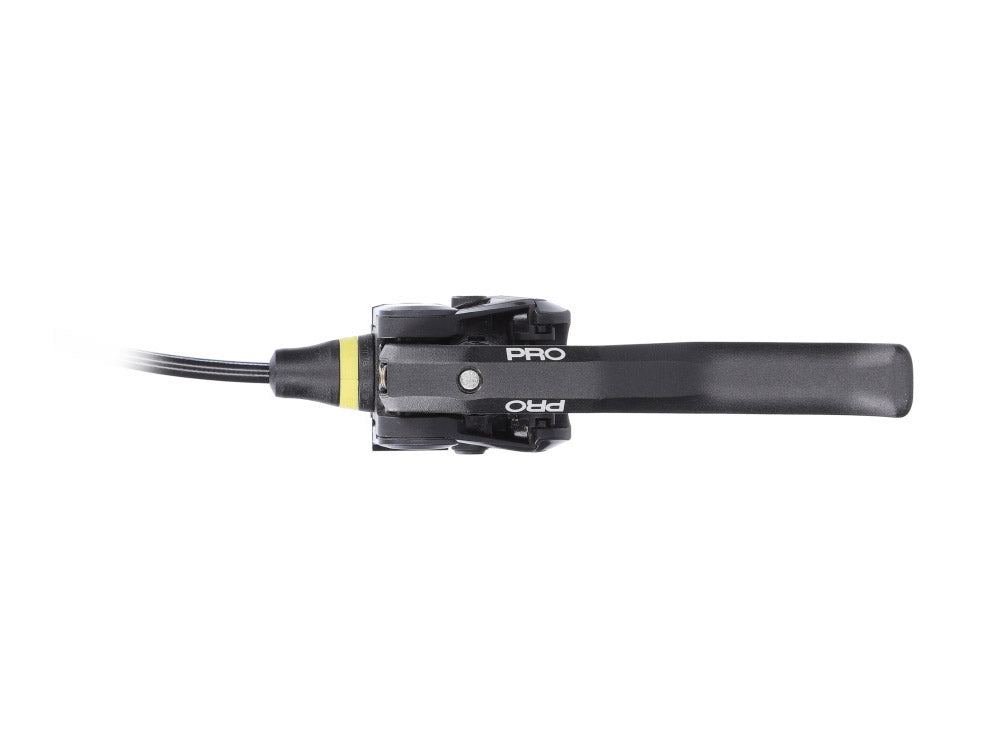

Master unit with Carbotecture brake lever and Easy-Link cable connection
Even the master unit is a sign of power. It has a massive design and blends in perfectly with the look of modern downhill e-bikes. The ergonomic lever made of lightweight Carbotecture material sits comfortably under the fingers and moves a 12 mm diameter piston. It provides a direct braking feel and leaves nothing to be desired in terms of modulation. It also has a predetermined breaking point to minimize damage in the event of a fall. Thanks to the bolted bearing point, the new lever can be installed quickly. It goes without saying that the individual grip width adjustment can be carried out without tools using a small rotary wheel.
Installation is also extremely simple. The hinged clamp can be attached without removing the grips and allows SRAM and Shimano shifters to be fitted using the Shiftmix adapters supplied.

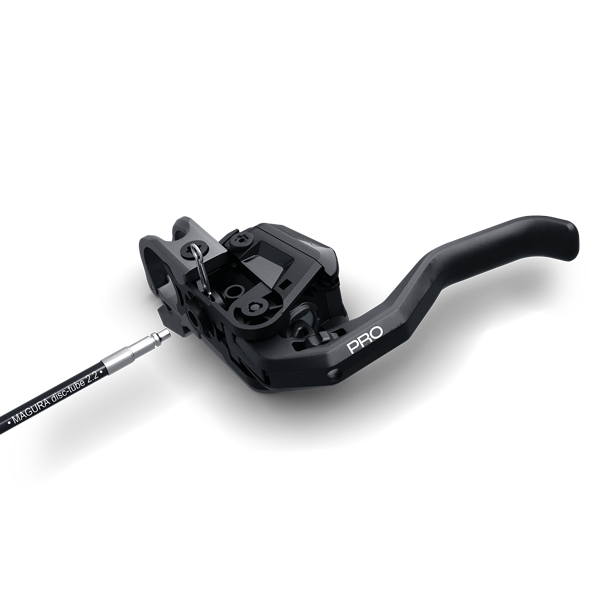

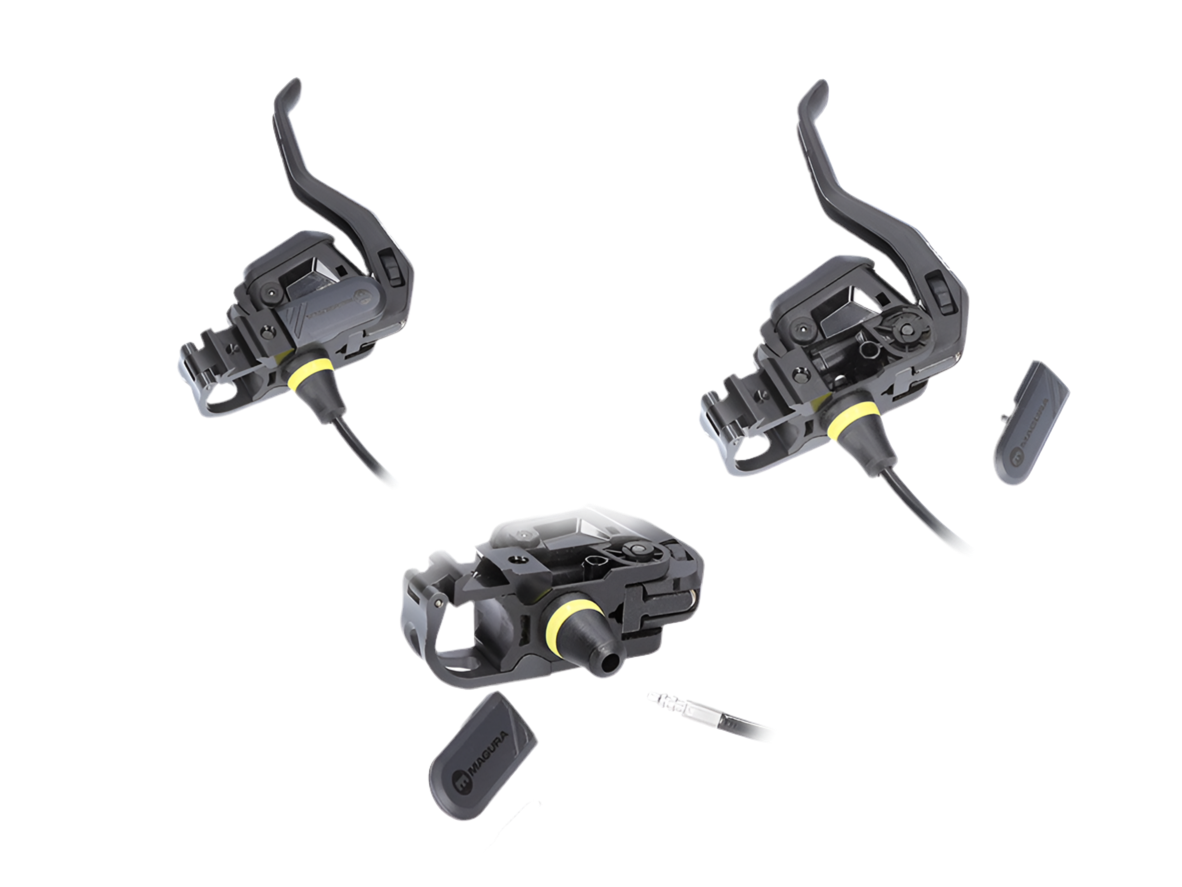

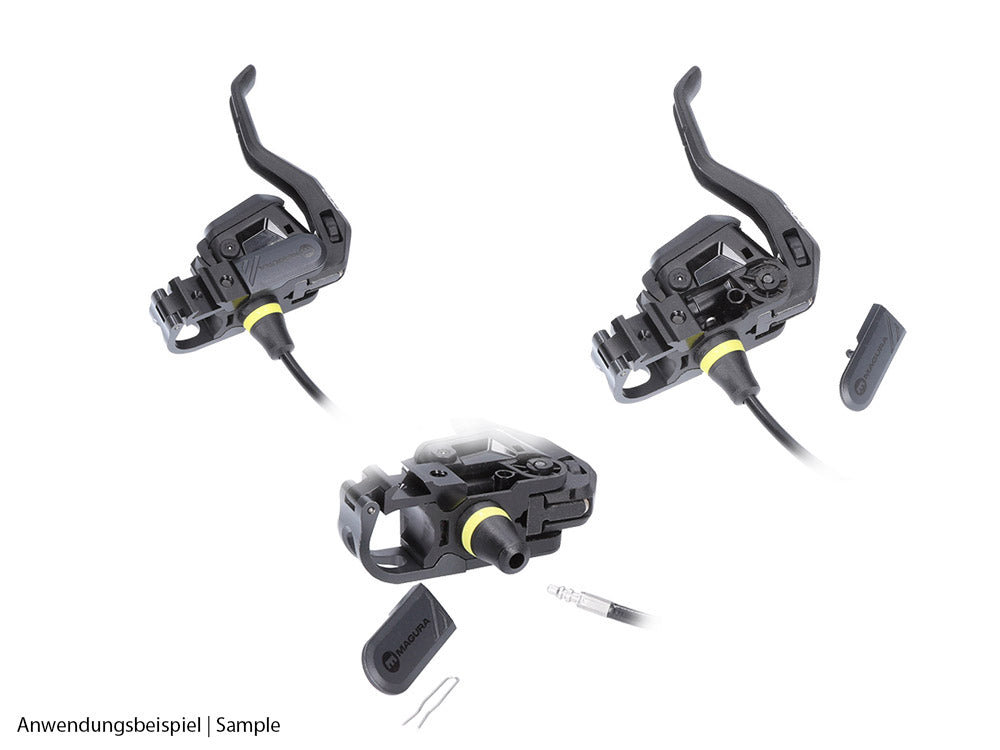

Another innovative solution is the EASY-LINK connection. It allows the brake hose to be quickly detached without the need for special tools. Simply remove the cover cap, pull out the safety pin and the cable can be removed. A clever idea, especially for today's frames with internally routed cables.

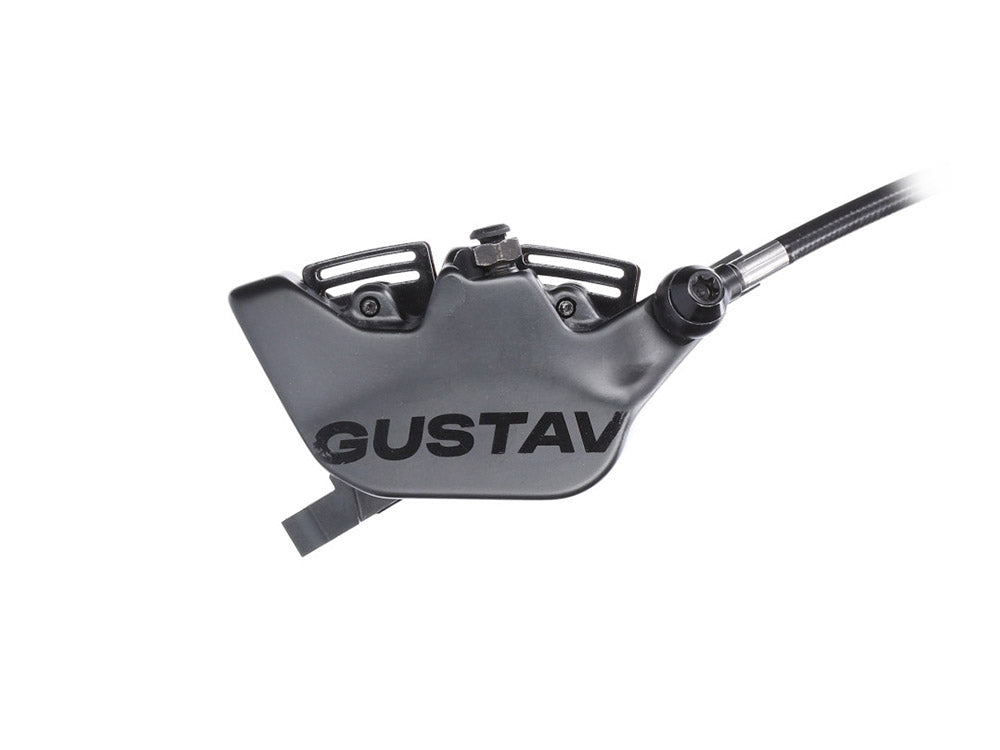

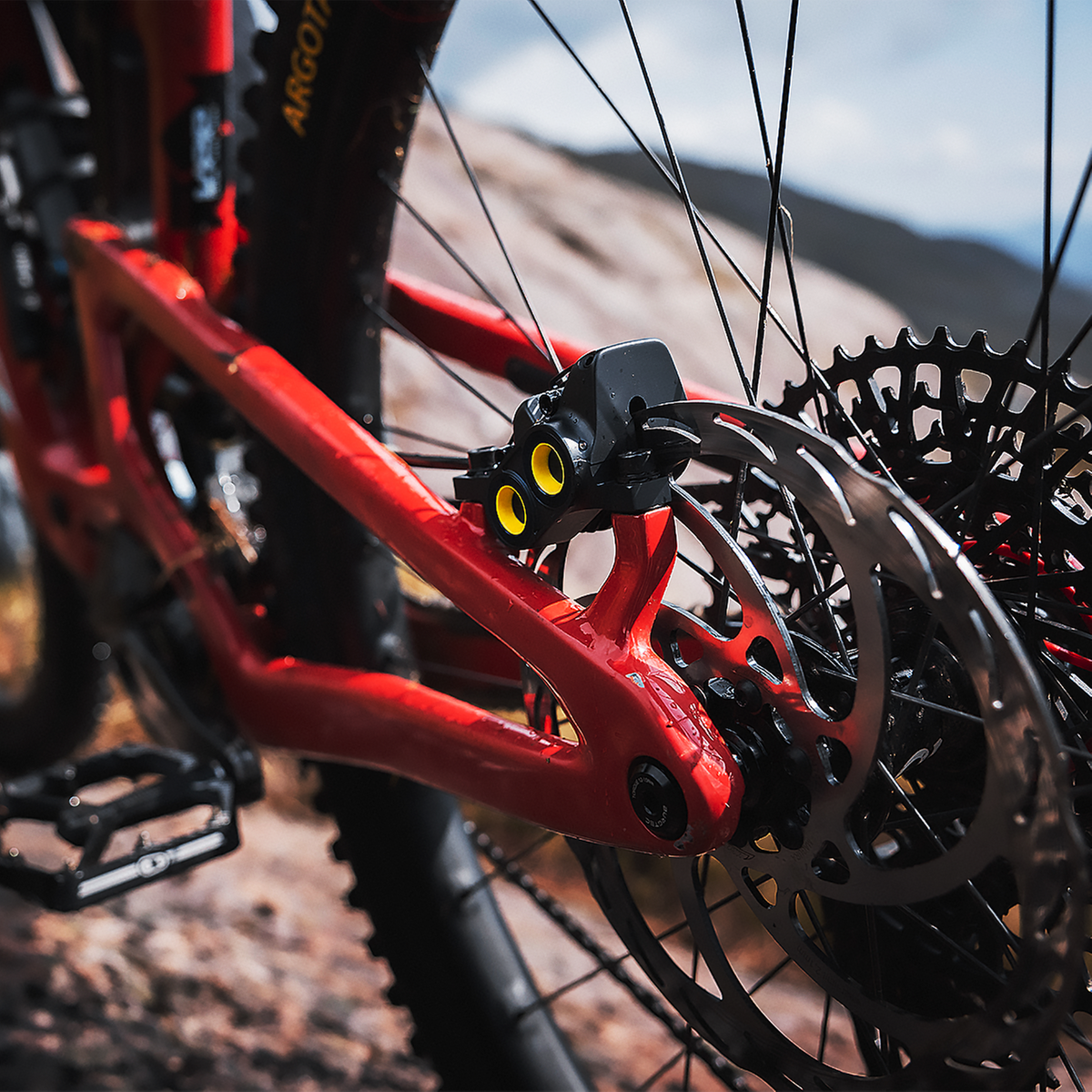

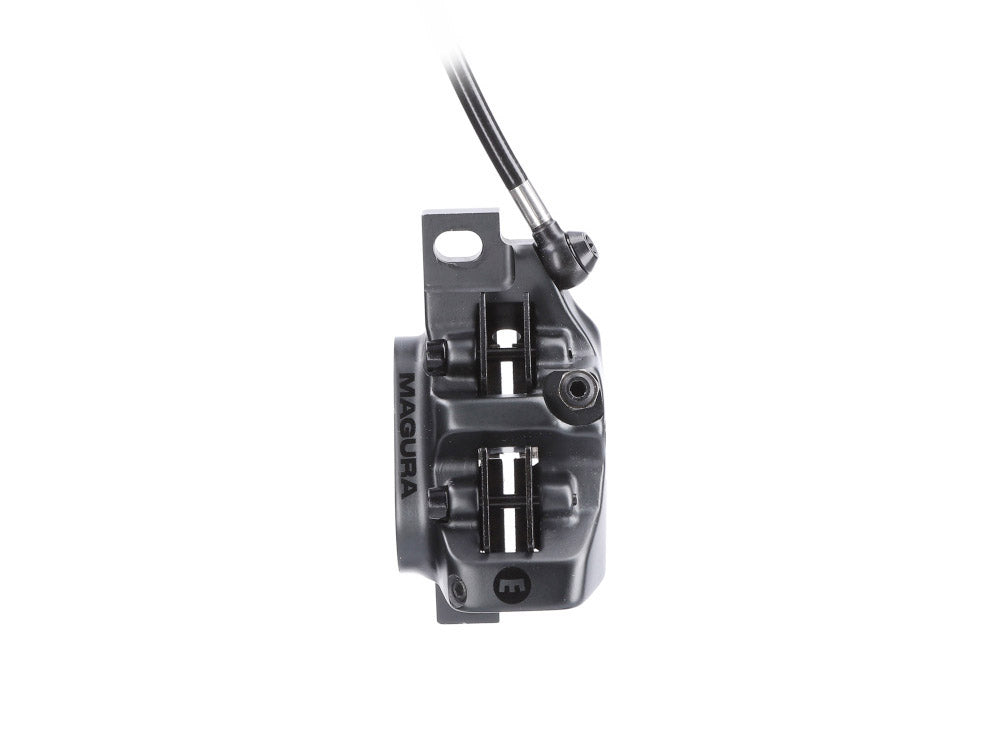

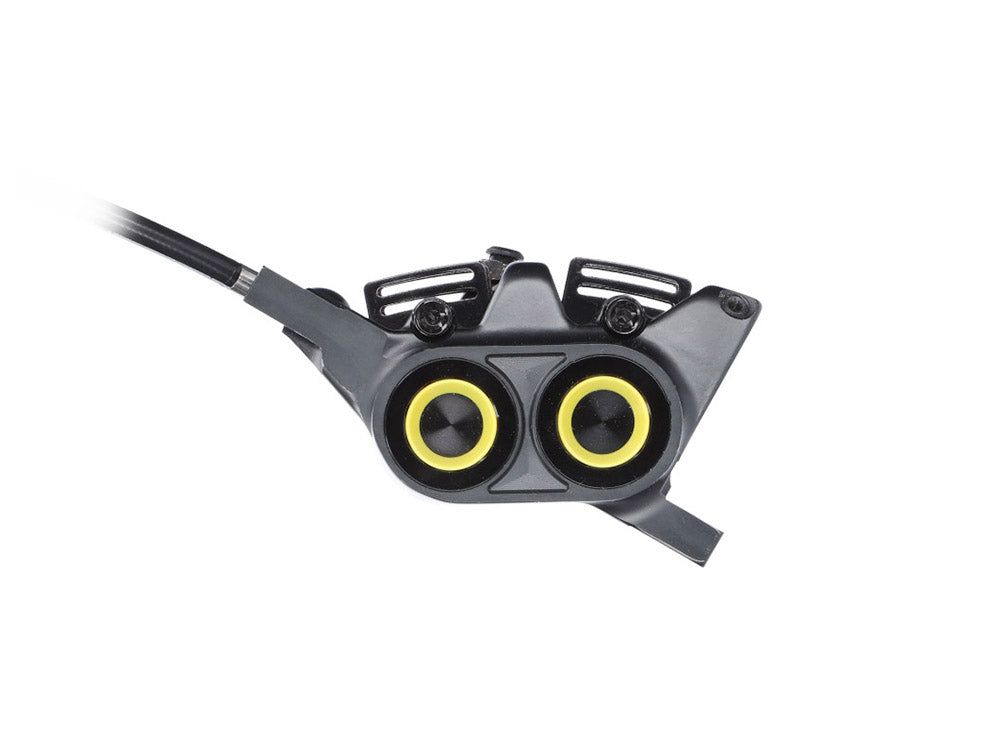

4-piston brake calliper

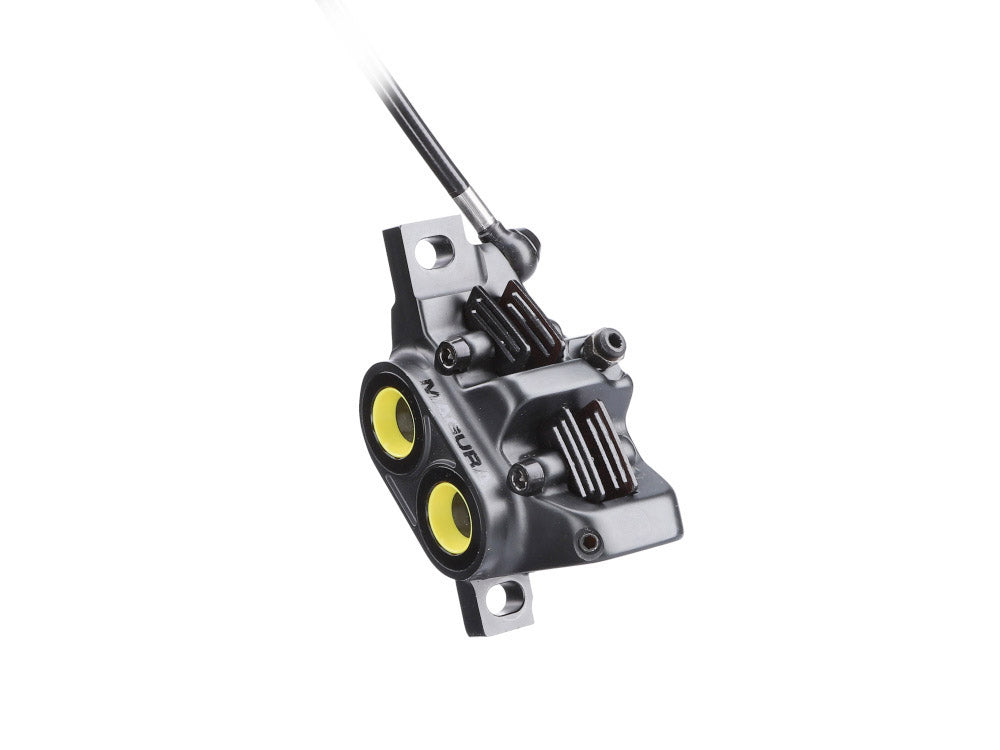

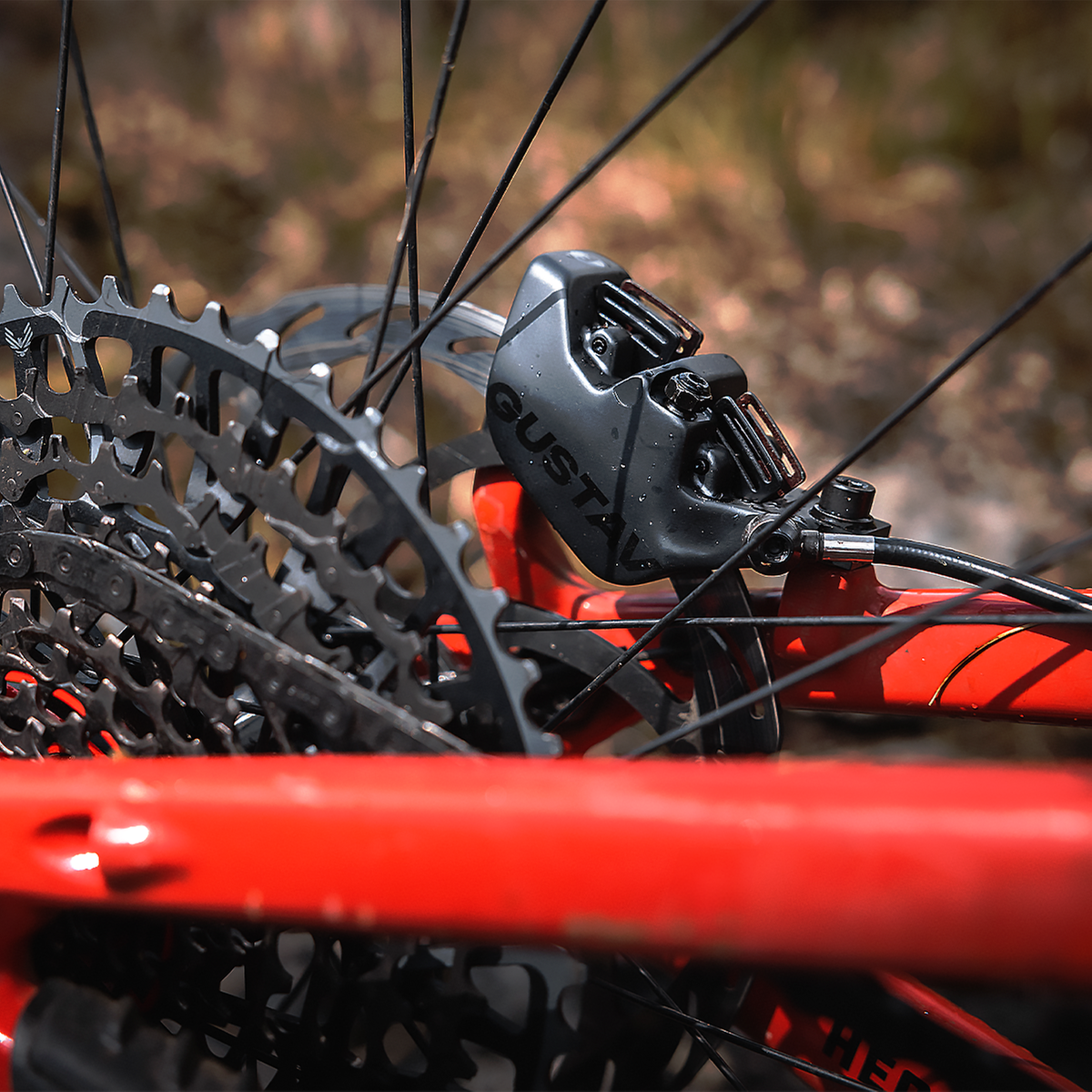

The solid brake calliper, forged from high-quality aluminum, transfers the concentrated braking force to the disc. Four pistons with a diameter of 19 mm do the work, while the one-piece design increases rigidity and ensures a very sensitive response.

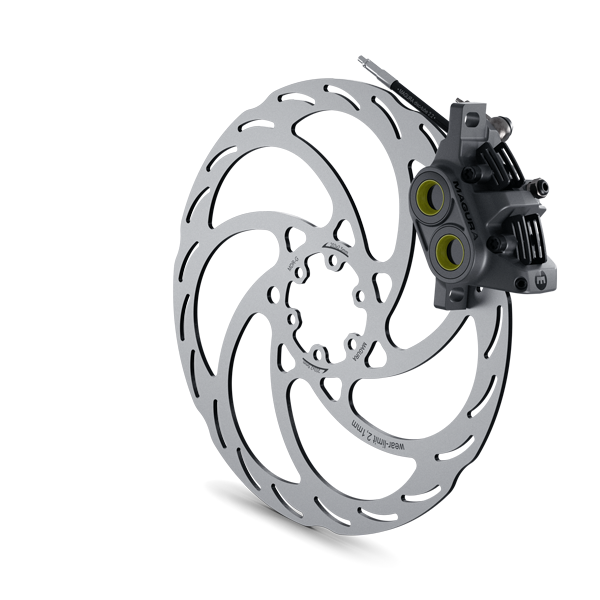

The Gustav PRO forms the ideal pair with the optionally available Magura MDR-S 2.5 rotors. Their 2.5 mm thick friction ring guarantees lasting stability even on long downhill rides. In addition, a diameter of 203 mm is completely sufficient. Of course, conventional brake disks can be used without any problems.
The 13.S brake pads were installed for optimum deceleration. They have approx. 40 % more material compared to the MT7 and ensure quiet and powerful braking as well as extremely low wear. What's more, the special compound means there is no need to brake for a long time.
Because you naturally want to ride rather than screw, the individual components of the Gustav PRO are specially designed for durability. Not only do the robust brake pads and rotors extend the maintenance intervals, but the 7 ml reservoir also ensures that there is little air in the system. If bleeding is nevertheless necessary, this is made much easier by an improved valve. Furthermore, there are no hidden corners or dead ends in the oil channel, so that every air bubble is pressed out.
The high manufacturing quality is also typical of Magura, so that you can wind down thousands of kilometers without having to worry about your safety.
Technical data
Area of application: Enduro, freeride, downhill, e-bike
Brake caliper material: Forged aluminum
Brake lever material: Carbotecture
Housing material: Aluminum, plastic
Mounting bolt material: Steel
Piston: 4, Ø 19 mm
Brake mounting: Postmount
Disc brake rotor: 2 X Magura MDR-S 2.5 | 180 or 203 mm (optional)
Brake fluid: Magura Royal Blood mineral oil
Brake hose: Plastic
Brake pad: Magura Sport 13.S
Brake lever design: 2-finger
Grip width adjustment: yes, tool-free via adjustment wheel
Pressure point adjustment: no
Mounting: on both sides (FlipFlop)
Clamp: split, Shiftmix (adapter for SRAM and Shimano EV included)
Cable length: 2000 mm
Color: black, anthracite, grey, yellow decals
Weight according to manufacturer: 348g
Weight self-weighed: 363g

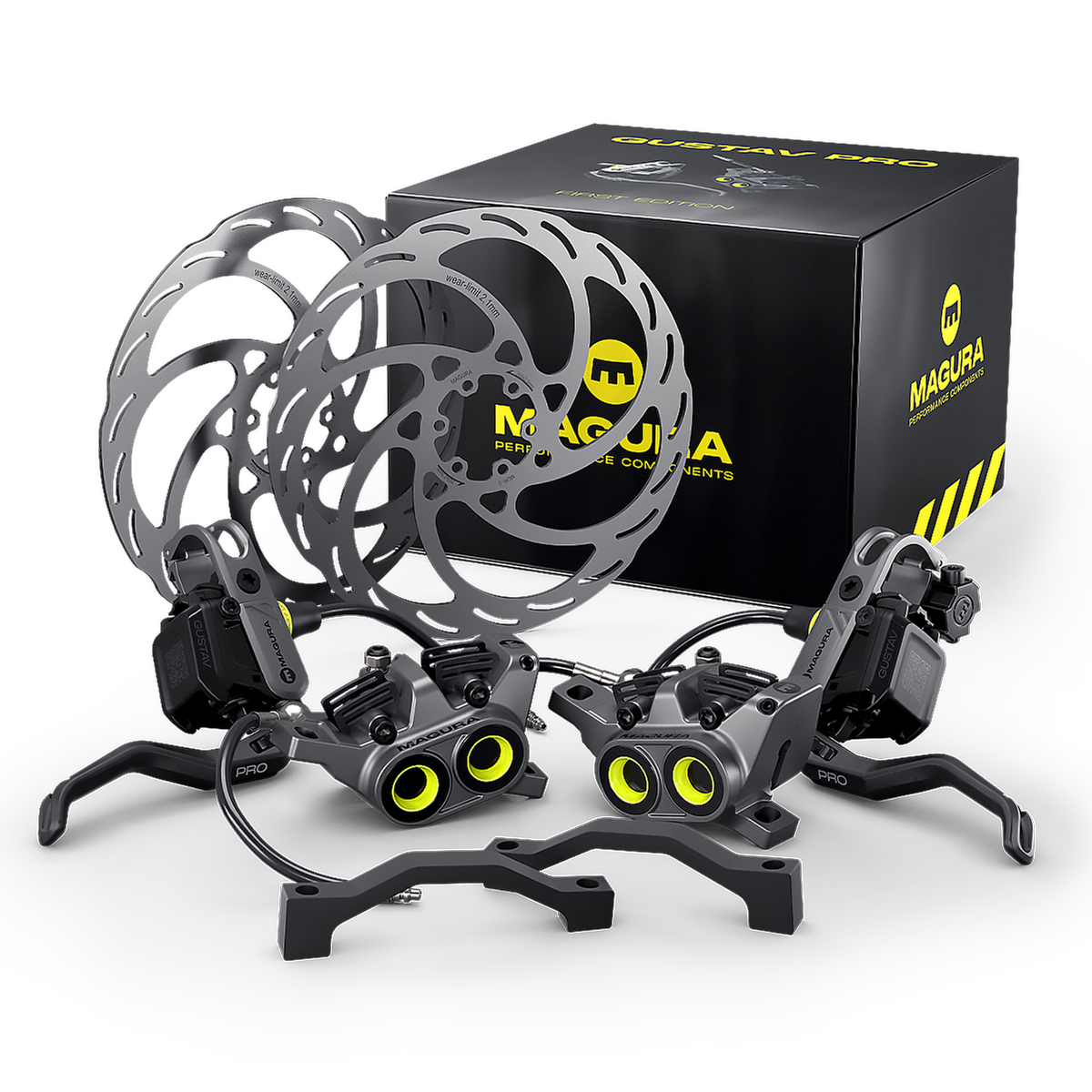

Scope of delivery:
- 2x GUSTAV PRO brakes
- 2x MDR-S 2.5 203mm
- 2x QM44 adapters
